NEWS

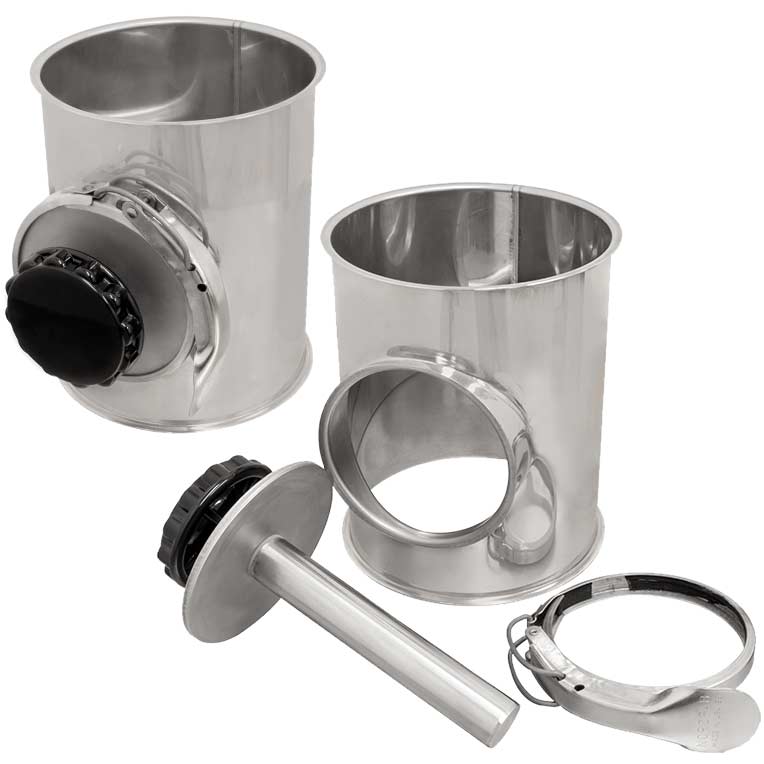

The new SLIM Series Spouting Line Inspection Magnets offer single or multiple inspection points in spout lines, with the easy installation of a flanged unit.
|
The magnet is mounted to a clamped door plate assembly and is always in the product flow. Perform a visual check by unclamping and extracing the assembly to inspect for any ferrous or weakly magnetic stainless contaminants
Strategically place the SLIM Series at several locations throughout the process stream - anywhere the product drops into a gravity spout. Use in conjunction with a comprehensive foreign contamination program.
|
If each shape stands for a single-digit number, what is the answer to the last equation?
|
Quality in a service or product is not what you put into it. It is what the client or customer gets out of it.
–Peter Drucker
|
|

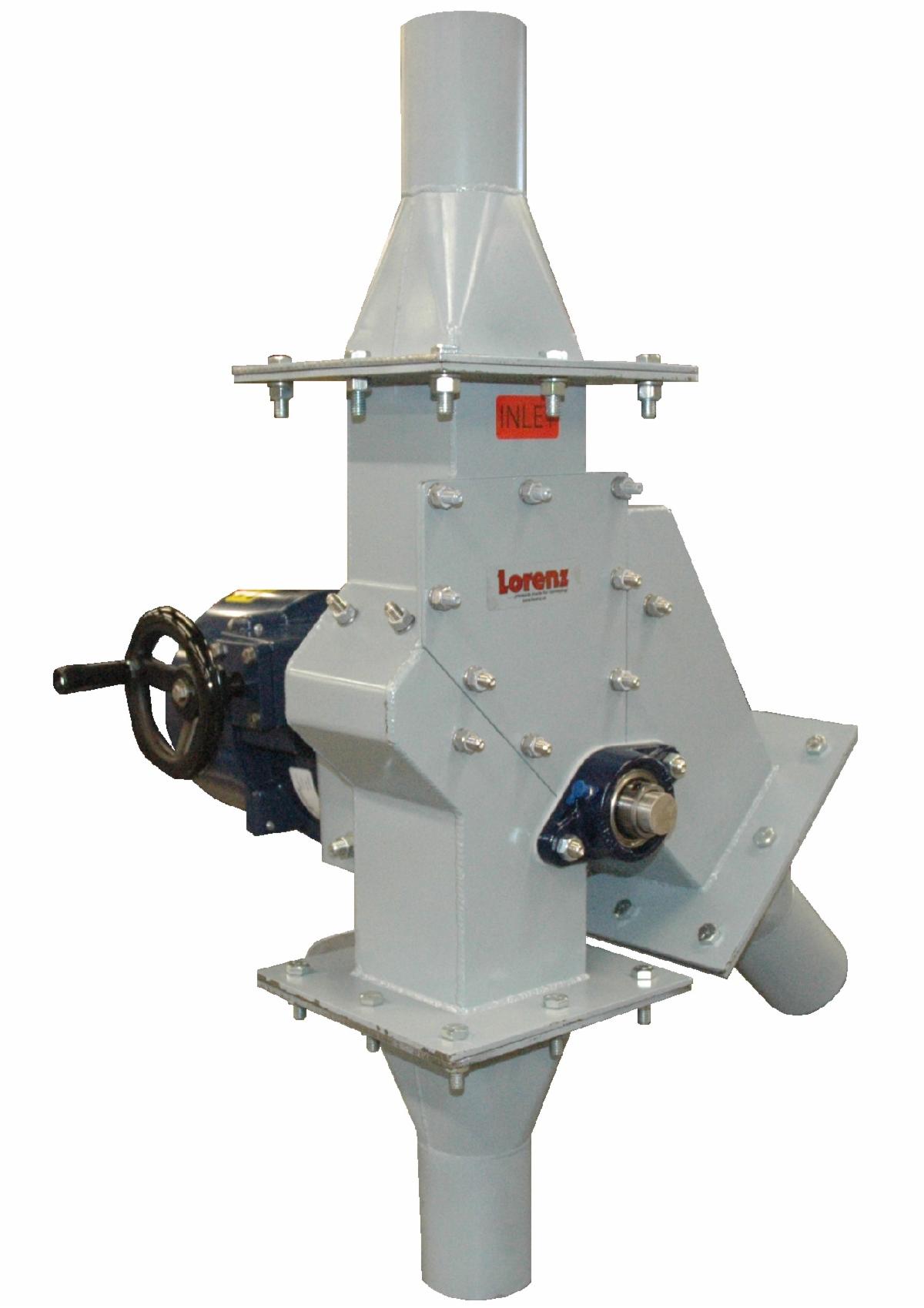

DIVERTER VALVE
CRASH COURSE
|
Diverter valves are processing valves commonly used in pneumatic conveying and bulk material transfer. Designed to direct flow from a single source to two or more downstream machines, they are also used to converge multiple upstream sources into one.
There are many types of diverter valves. "One size fits all" is not an option. When selecting a diverter valve for your pneumatic conveying system application, many considerations are in play:
-
Material: What are the material characteristics - particle size, weight, flowability, hardness and abrasiveness?
-
Contamination: If contamination of product stream is an issue, ensure that each stream coming into or exiting the diverter is independent or that no areas inside the valve itself hold or trap material.
-
Sealing: To prevent environmental contamination or waste, seal diverters internally to isolate the various flow paths. Or, seal to atmosphere, preventing contamination from entering the product stream or from product or dust escaping.
-
System Design: Be aware that both air and/or material leakage affect both the system capacity and the blower/line size calculations.
-
Dilute or Dense Phase: Is your system is designed for dilute phase pneumatic conveying (vacuum or pressure) or dense phase pneumatic conveying? Dilute phase is conveying line pressures to 15 psig/1 bar, while dense phase is pressure to 90 psig or 6 bars.
-
Actuators: Manual, air actuated, electric motor actuators and hydraulic actuators are all available, depending on your site's power availability and system requirements.
|

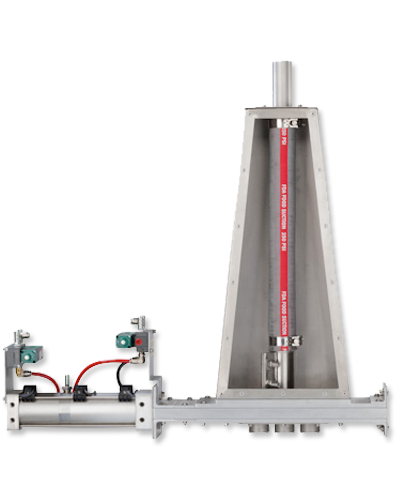

Slide Flex Diverter Valve
Eliminate Cross Contamination
|
The Series P Slide Flex Diverter Valve by Lorenz eliminates cross contamination of product. Designed for frequent cycling in vacuum or dilute phase pressure conveying system, it eliminates downtime and wasted product in your conveying line, resulting in money saved.
The pneumatic actuated flex valve is for vacuum or low pressure (dilute phase up to 15 psig) conveying systems and is available in sizes from 2" to 8" OD.
|
Standard Features
- Positive Blade Lock (PBL) between blade & cylinder rod
- Internal magnetic piston, cushioned air cylinder
- Polished steel blade
- Active Compression Seals (ACS)
- Light weight aluminum body construction
- Temperature rated for up to 82° C
- (180° F)
- Wall thickness of 16, 14 & 11 gauge, schedule 10, 40 & 80
- Fully tested prior to shipping
Options
- Position switches 5 volt to 240 volt AC/DC
- Proximity switches
- Inlets/outlets – straight or flanged ends
- High temperature modifications
- Stainless steel hoses (maximum 6″)
- Special seal configurations
- Electric actuator
- Solenoids 110 AC or 24 volt DC
- NEMA 7-9 hazardous locations
- Class I, Groups B, C & D, Class II, Groups E, F & G
- Double acting or single acting spring return solenoid or manual lever valve
- Prewired terminal boxes
Series P 3 Way Slideflex Diverter Video Below
|
